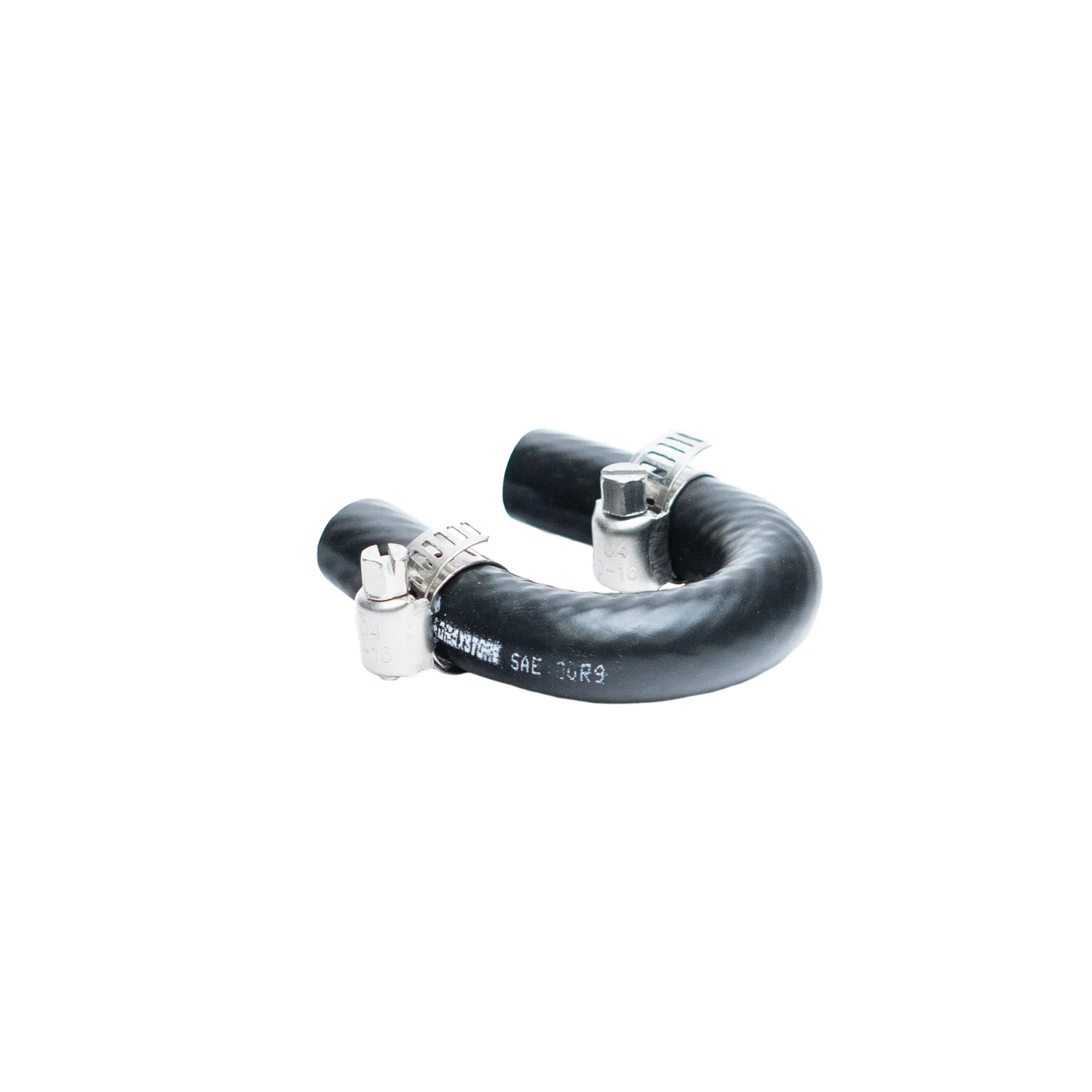

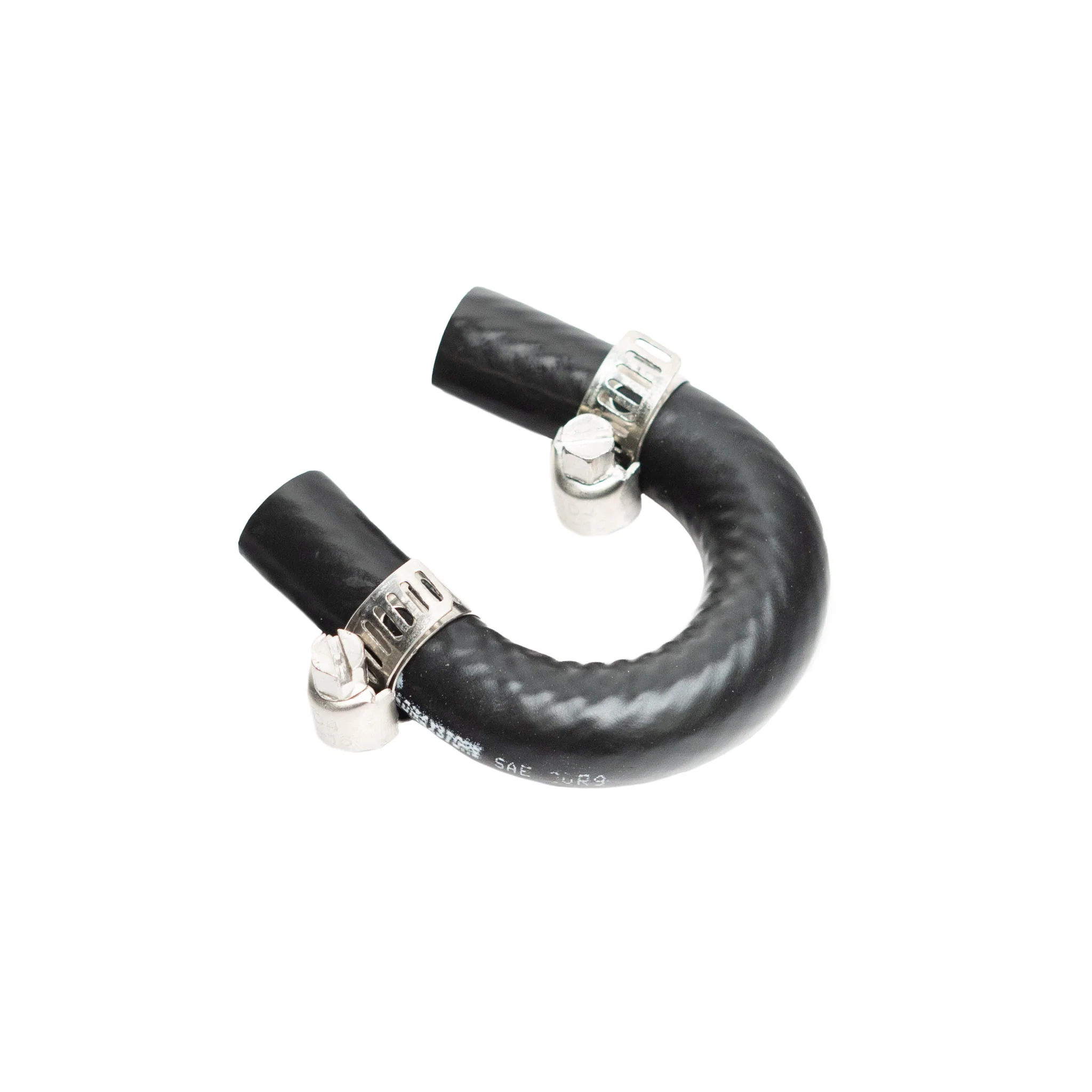

DmaxStore Fuel Rail to Return Pipe Hose, 2004.5-2010 LLY/LBZ/LMM

Fits: 2004.5 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LLY/LBZ/LMM Duramax Diesel

Upgrade your LLY/LBZ/LMM Fuel Rail to Return Pipe Hose with this premium DmaxStore option to replace any cracked or worn out hoses. The DmaxStore design boasts an industry-leading, SAE 30R9 approved, 4-layer structure - far superior to the other 2 or 3 layer options available. Don't be fooled by anything less, trust in the unbeatable quality of DmaxStore.

Features:

• Industry leading, 4 Layer, SAE 30R9 design
• Temperature range -30 °F to 257 °F (-35 °C to 135 °C)
• Compatible with diesel and biodiesel fuels
• Conforms to EPA and CARB requirements
• Pre-formed hose for your application
• Exceptionally flexible for easy routing and installation

Includes:

• 1 - Fuel Rail to Return Pipe Hose
• 2 - Hose Clamps

Layers:

1. Tube: FKM fluoroelastomer rubber for low permeation and chemical resistance
2. Cover: CSM (chlorosulfonated polyethylene) resists a wide range of fuels, oils and lubricants, including biodiesel fuels
3. Reinforcement: Single-braid aramid yarn provides exceptional dimensional stability in high-temp environments
4. Exterior Cover:  CSM (chlorosulfonated polyethylene) resists heat, ozone and weather

Replaces:

• GM Part# 97321375
