Mazzulla Billet Upper Control Arms, 2020-2024 LM2/LZ0

Fits: 2020 thru 2024 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Diesel

*Please call for availability*

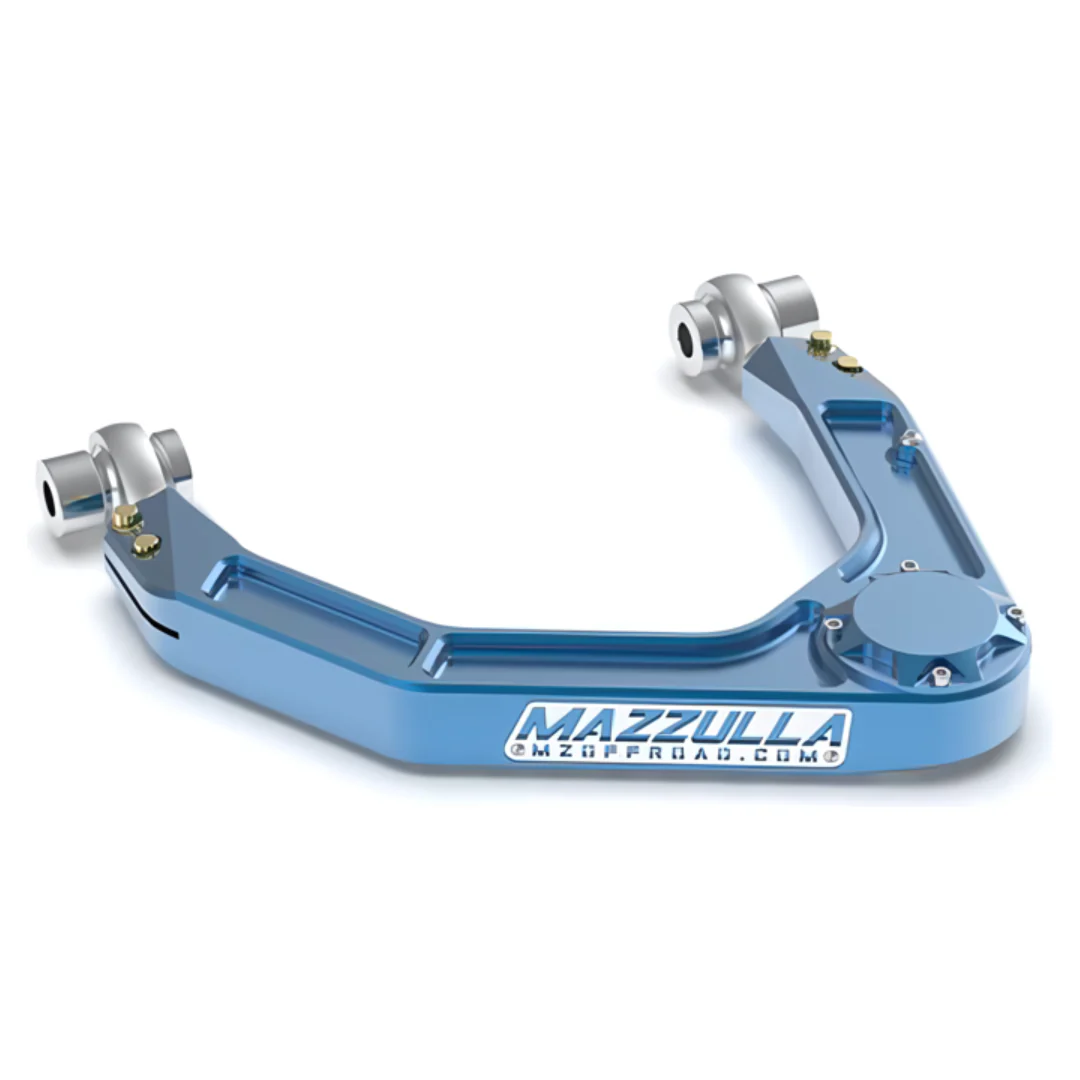

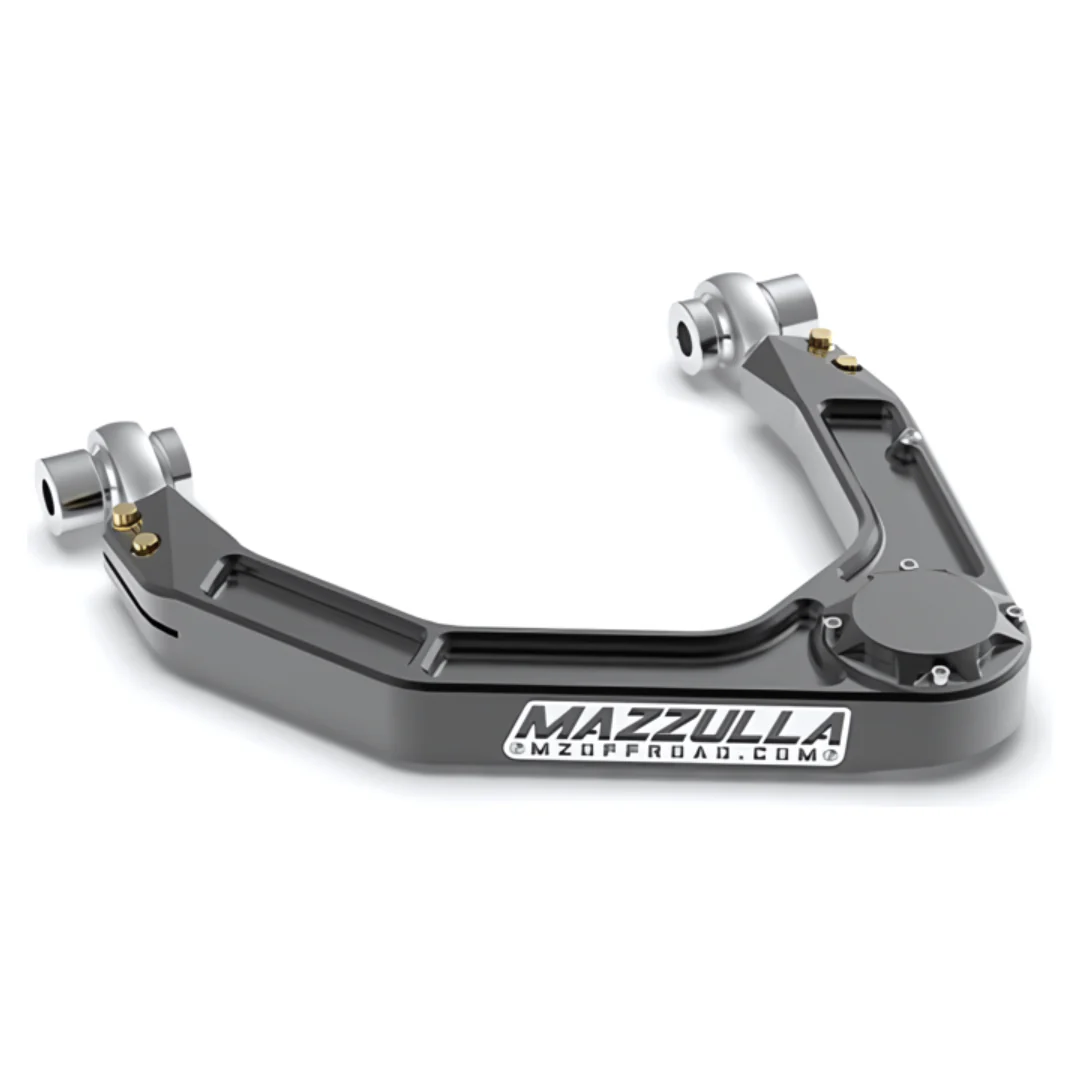

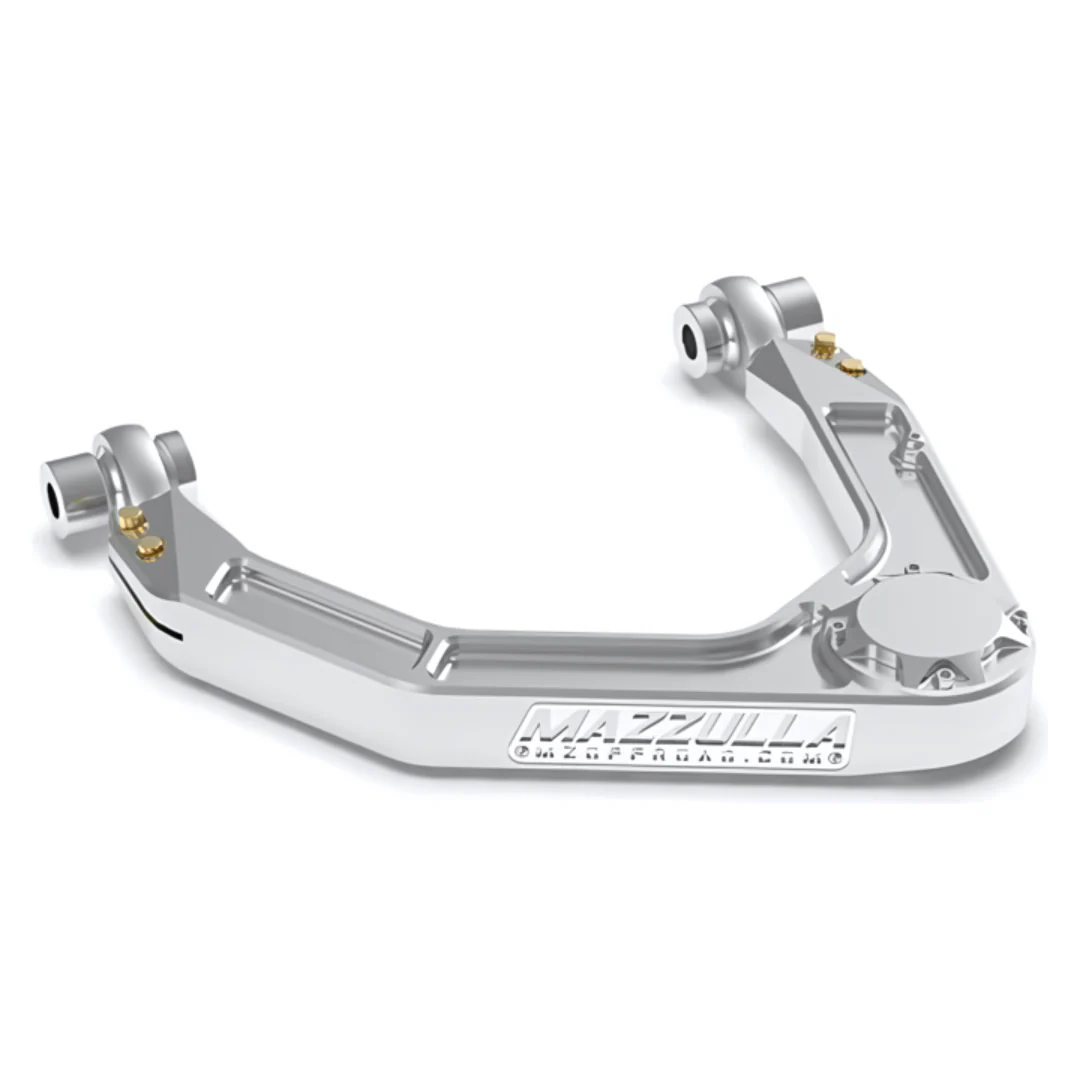

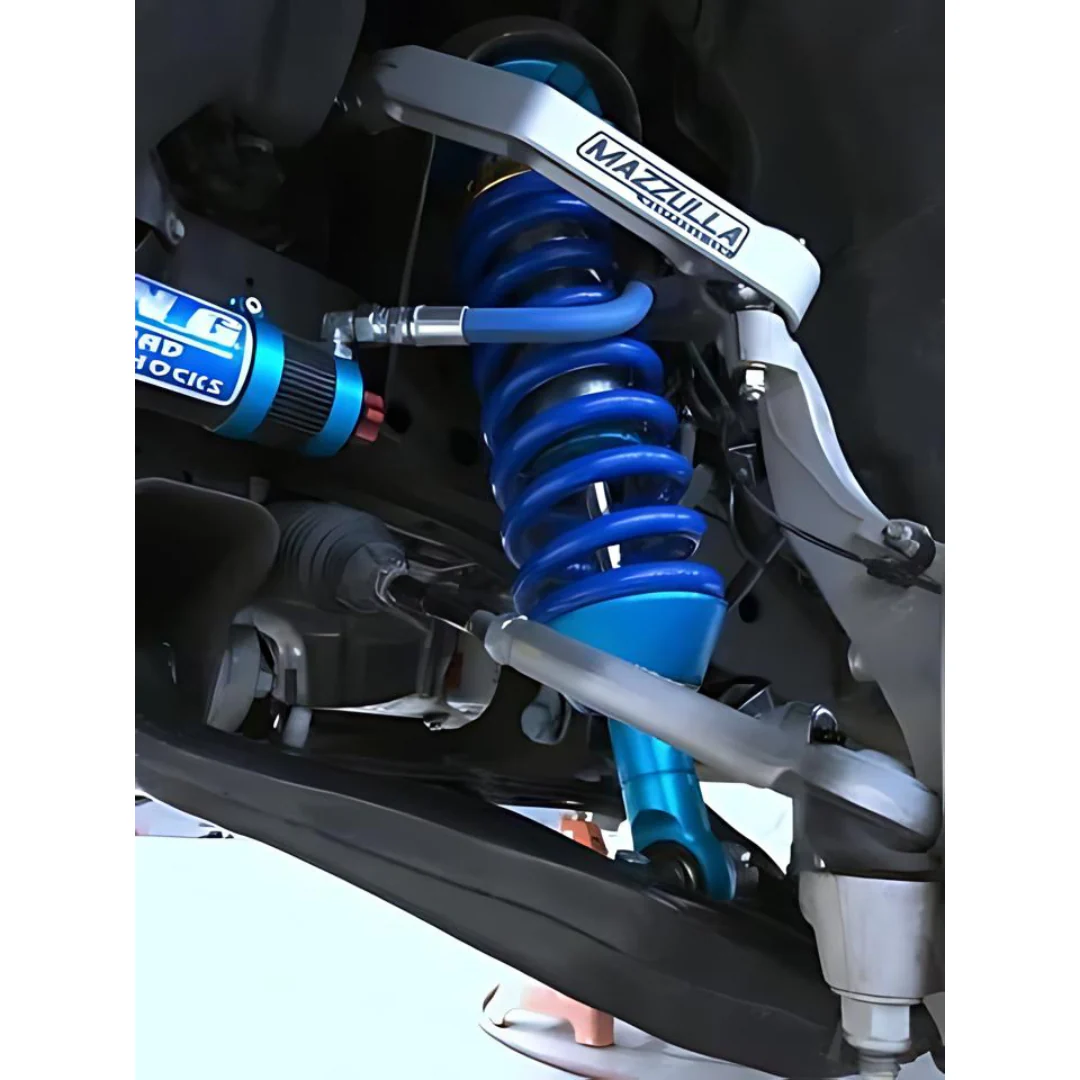

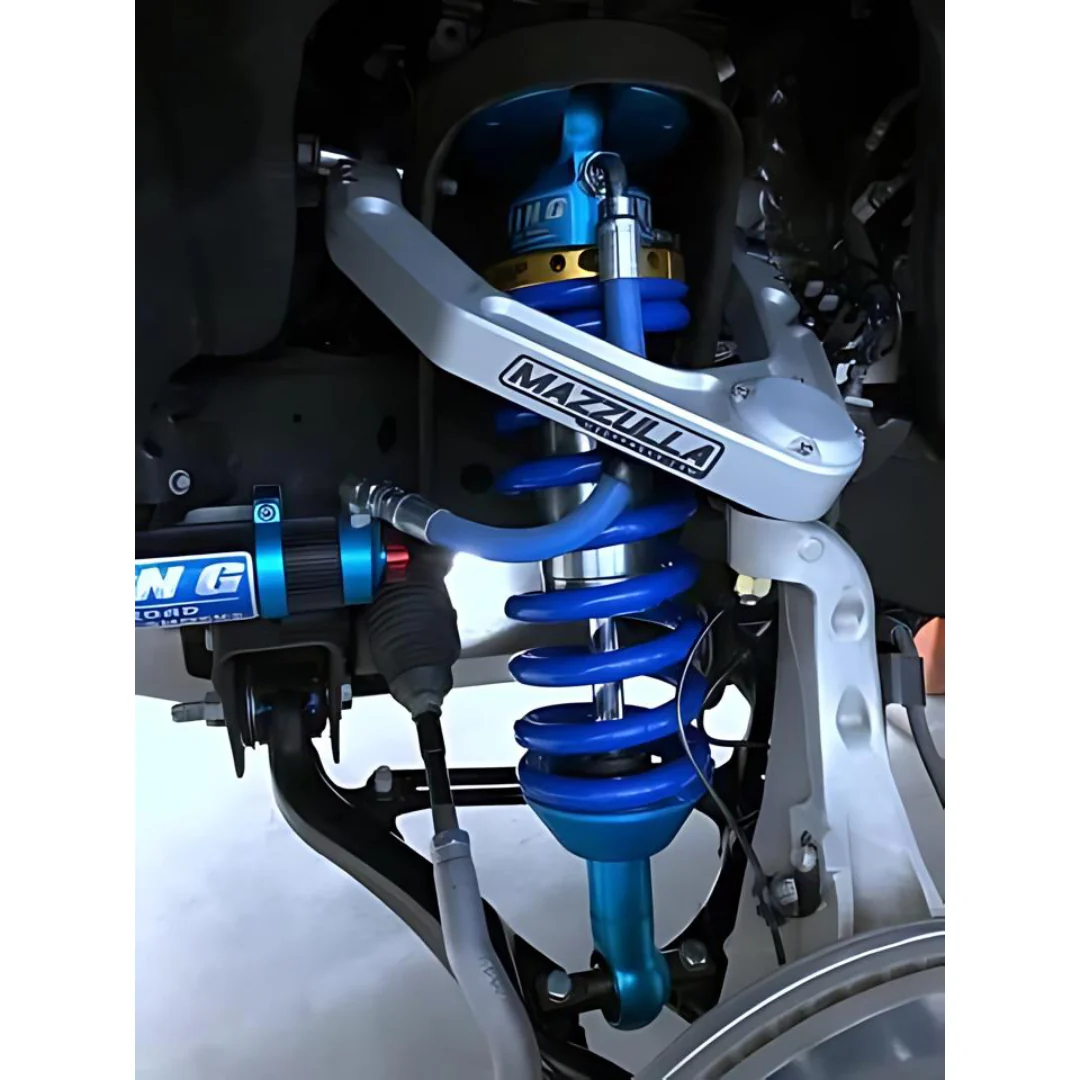

These billet machined uniball upper control arms are the ultimate performance, strength and durability gain for the front of your Chevy or Gmc truck. In a lifted application the upper control arms need corrected camber and caster geometry so that the factory alignment can be achieved. When adding aftermarket extended travel coilover shocks you will need more angularity in the upper control arm outer suspension pivot and these large 1.25" uniball bearings offer more clearance as well as an increased strength and longevity of the joint. The heim joint spacers and uniball pins are made using heat treated stainless steel and hold a tolerance .0005" for maximum fitment on bearing bores and factory upright tapers. These arms are machined in low volume using USA materials and the attention to detail are second to none. The combination of the upper control arm and a shock will yield improved handling characteristics, strength for offroad use and 40% increased wheel travel while maintaining the stock track width and suspension mounting locations. Ease of installation, high quality billet control arms and a race style shock absorber make this setup a great choice for anyone wanting to go fast in the dirt.

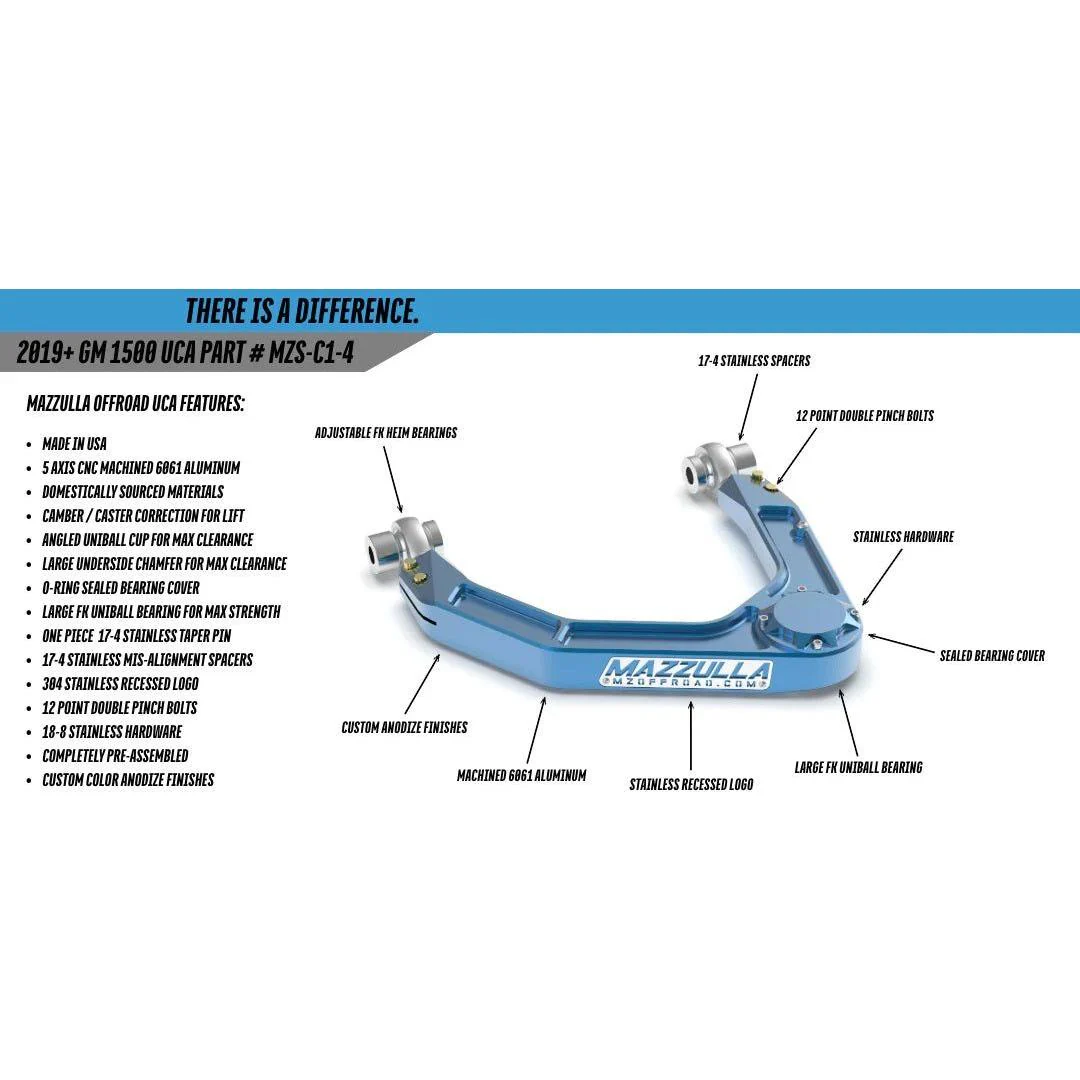

Features:

• CAD designed and engineered

• Manufactured in the USA

• Billet machined 6061 aluminum construction

• FK Teflon lined 1.250" uniballs

• FK Heim Joint inner pivots

• Stainless steel hardware

• Aircraft grade 12 point pin hardware

• 17-4 heat treated stainless steel pins and spacers

• O-ring sealed uniball cover

• Maximum alignment capability compared to stock

• Improved geometry for lifted applications

• Anodize finish (Black, King Blue or Silver)

Notes:

• Can be used on 2wd and 4wd suspension

• Requires factory service stop removal

• Recommended wheel backspace is 4.75"
• Process for shipment is 2-5 days (Please call for availability)

Install Instructions:

• Click here
