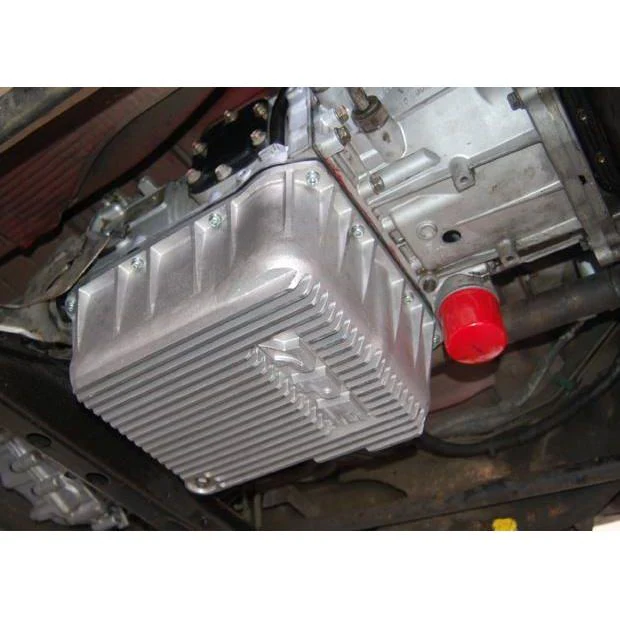

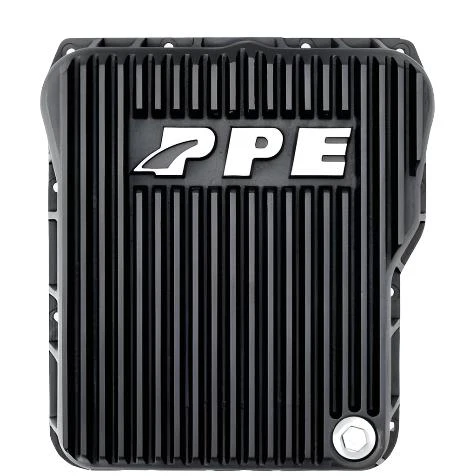

PPE Deep Transmission Pan 2001-2019 LB7/LLY/LBZ/LMM/LML/L5P

Fits 2001-2019 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM/LML/L5P Duramax Diesel

Simply stated, more is always better when it comes to transmission fluid. Higher volumes of fluid take longer to heat up allowing for more stable transmission temperatures which help to extend transmission life.

PPE’s Heavy-Duty DEEP Transmission Pans hold an extra 4 quarts of fluid and are cast from high-quality aluminum for optimal heat dissipation. Large 3/4 inch cooling fins outside and heat sink fins inside reduce operating temperatures up to 40 degrees.

The PPE Heavy-Duty DEEP Aluminum Transmission Pan also features a high-powered Neodymium-magnet-equipped drain plug to keep metal contaminants out of the transmission internals.

PPE exclusive built-in filter lock comes standard and keeps deep filters securely in place. Allen-head mounting bolts and a new deep filter are included with this kit. Must use original style Allison pan gasket.

Features:

• Internal and external cooling fins, 6.25 inches from the face of the pan to the tops of the fins
• Increases fluid capacity by 4 quarts
• Decreases trans temperatures up to 40 degrees
• Robust side ribs provide added strength
• Pan cast from A356-T6 aluminum alloy
• Plugs, cap screws, and washers are all Stainless Steel
• Large 1 inch drain port
• High strength Neodymium magnet-equipped Stainless Steel drain plug
• Drilled and threaded 1/8 and 1/4 inch NPTports for optional temperature probes
• Compatible with OEM gasket
• Easy bolt-on installation and removal makes service quick
• Built in Filter Lock keeps filter securely in place

Includes:

• Allison deep pan filter
• Installation hardware
• 1” 304 Stainless drain plug with large 17mm hex head and re-usable VITON® O-ring

DmaxStore Note:

• Allison 1000 Transmission
